Author Topic: Jackson Kayak Cuda Transducer Mount  (Read 2131 times)
0 Members and 1 Guest are viewing this topic.
n2yakz
Newbie
*
Offline Offline

Posts: 27


« on: March 20, 2012, 09:40:13 AM »

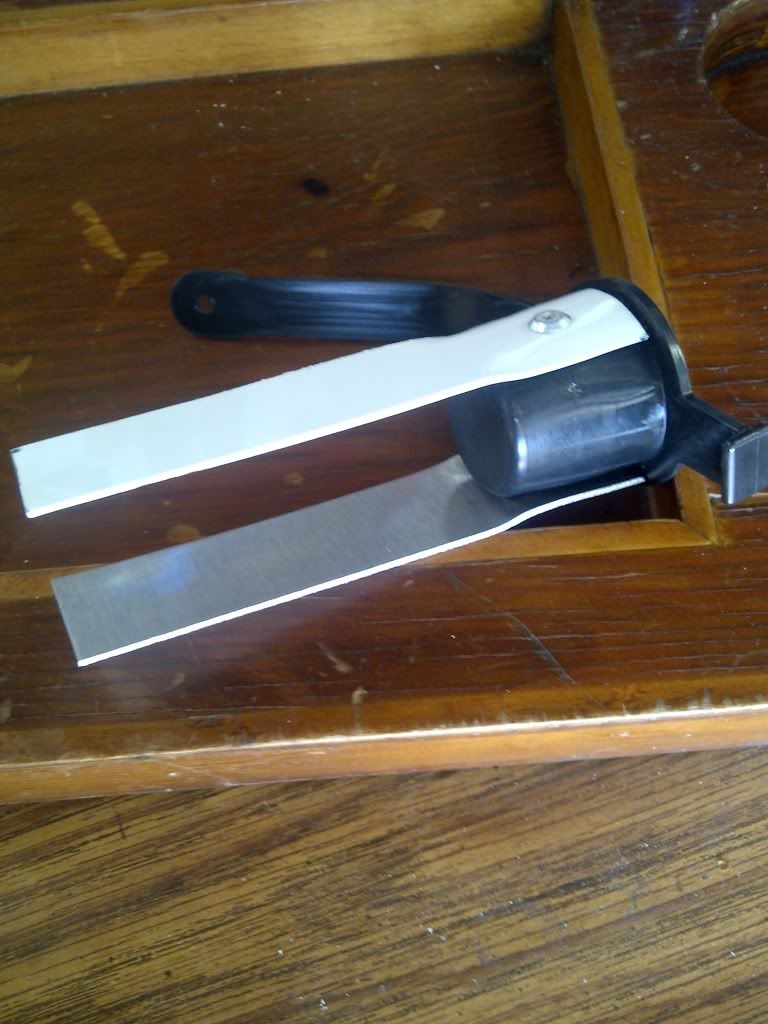

I just picked up a Cuda from ARC yesterday and started my rigging with a transducer mount. I have a Garmin Echo 300c to mount up. I basically took one of the scupper plugs that came with the yak, cut some strips of 16 guage aluminim for mounting arms and here is what I have so far...

I used a hammer and beat the aluminum to round out the top to the shape of the scupper once it's pushed down into the hole, drilled some holes about halfway down the scupper, put a washer on the inside and used a pop rivet to hold it all in place..

http://i226.photobucket.com/albums/dd92/pairofjokers_2007/scupper3.jpg
Jackson Kayak Cuda Transducer Mount



From the top...

http://i226.photobucket.com/albums/dd92/pairofjokers_2007/Scupper1.jpg
Jackson Kayak Cuda Transducer Mount



From the bottom...

http://i226.photobucket.com/albums/dd92/pairofjokers_2007/scupper2.jpg
Jackson Kayak Cuda Transducer Mount



It was at this point my camera phone died, so I will take more pics soon of the actual transducer mounted. All I did was place the transducer into the recessed scupper hole about even with the bottom of the boat, mark holes for the bolt and then mounted it up. To make sure I get the best signal I may need to move the transducer up or down so I left some extra metal on the end and drilled another set of holes above and below the middle set so I can move it easily. Drill a hole in the bottom of the scupper for the wire and it's good to go.

Tom
Logged

Jackson Cuda, Malibu Pro2, OK Malibu 2XL, and Ascend FS12T. Fishin fun for the whole family....
Deckape
Paid Member
Sr. Member
*
Offline Offline

Posts: 320


Wayne Mills


« Reply #1 on: March 20, 2012, 10:03:23 AM »

That's a good idea!
Logged

For a 10% PowerTeam Lures discount and a donation to HOW from me on any credits please use.
http://go.referralcandy.com/share/TPJVPL6
landingcrew
Jr. Member
**
Offline Offline

Posts: 70



« Reply #2 on: March 20, 2012, 10:19:26 AM »

another way of doing it is like this:

it is one of the considerations the jackson team used in designing the boats. along with the oval scuppers help to protect the transducer from getting to banged up.
Logged

JACKSON KAYAKS PROSTAFF
KAYAK FISHING RADIO WEDNESDAY NIGHT HOST
YAKANGLER.COM PRO
FREAK NASTY BAITS OWNER
Jekyll2000
Paid Member
Full Member
*
Offline Offline

Posts: 117



« Reply #3 on: April 18, 2012, 03:58:35 PM »

Did you ever get pics of the completed project?

Thanks,

Tony
Logged

Wilderness Systems Ride 135
